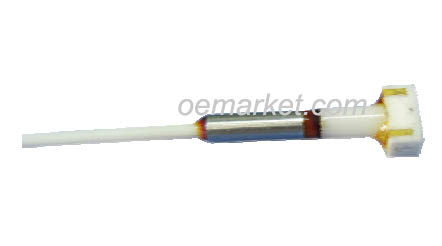

    Analog PIN Photodiode - 3GHz

    Model PD-A-30
    Price:   US$34.99
    Available Options:
    Connector Type:
    Fiber Type:

This analog PIN photodiode has high responsivity and high linearity. Its PIN photodiode has an InGaAs planar chip with diameter of 50 micron. It has low dark current and low capacitance, and can be used widely in applications such as CATV, CDMA systems.


  • Covers 1100 to 1650nm
  • Low dark current, low capacitance and high return loss
  • Two package options: mini coaxial package (three pins) or ceramic package
  • Single mode or multimode pigtail
  • 3GHz bandwidth, high responsivity and linear O/E response for analog applications


  • CATV/CDMA systems
  • O/E converter


Absolute Maximum Rating

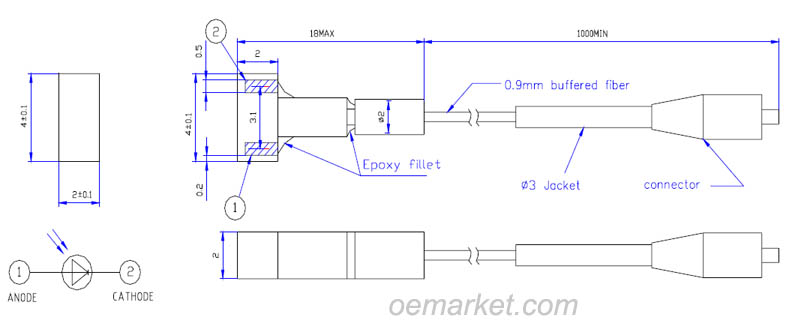

Package Dimension

Coaxial Package

Ordering Information:

a: Fiber Type; a=9 for single mode 9/125 micron fiber; a=50 for multimode 50/125 micron fiber; a=62.5 for multimode 62.5/125 micron fiber.
d: Connector Type, d=FA for FC/APC, d=SU for SC/UPC, d=N for no connectors, etc.

Example: PD-A-30-9-1-FU
