Polarization Maintaining Planar Lightwave Circuits (PLC) - 1x8

Polarization Maintaining Planar Lightwave Circuits (PLC) - 1x8
[PM-PLC-1x8]

Click to enlargeAsk a QuestionTechnology Explained

Polarization maintaining planar lightwave circuits (PM-PLC) is a low-cost high-performance PM device that can replace more expensive PM coupler module. It has very compact package, with PM Panda fiber, low insertion loss and improved environmental stability.

Features:

Relatively low cost
Low insertion loss
High polarization extinction ratio
High environmental stability and reliability
RoHS compliant

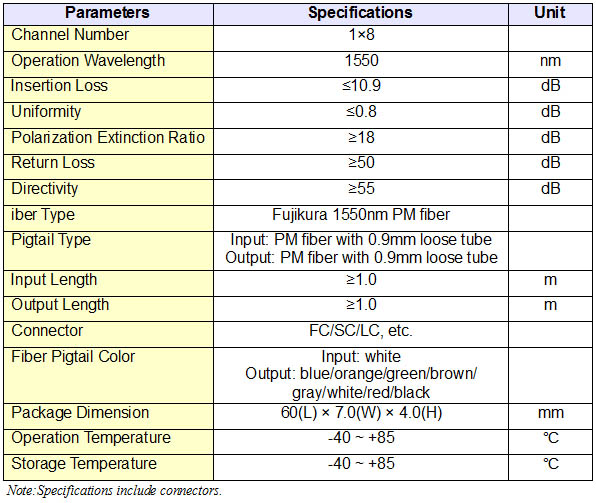

Specifications:

Product Package Dimension

Note: Slow axis is aligned to the connector key.

Ordering Information:

PM-PLC-1x8-1550-1-d
d: Connector Type, d=FA for FC/APC, d=SU for SC/UPC, d=N for no connectors, etc.

Example: PM-PLC-1x8-1550-1-FU
Optical planar lightwave circuits, PLC, 1x8, 1550nm, polarization maintaining device component, optical fiber PM coupler module

Available Options:
Connector Type:

Prices listed are for retail quantities. Please enquire with us directly for prices on large orders.

Note: Any additional specifications, such as the type of connectors (i.e. FC or SC, UPC or APC), user-defined coupling ratio or pigtail fiber length, can be specified at the Add Comments area on the Checkout webpage. You can also use emails to inform us your additional requirements.
