Portable OTDR (Optical Time Domain Reflectometer)

Portable OTDR (Optical Time Domain Reflectometer)
[OTDR-P]

Click to enlargeAsk a QuestionTechnology Explained

This portable OTDR is designed for maintenance and troubleshooting of optical fiber networks and transmission systems. It has an internet interface that enables communication with remote computers. It can be controlled remotely for measurement.

Features:

6.4 inch LCD screen
One key testing measurement
High speed signal processing for short measurement time
USB ports, SD card and Ethernet interface
Compact and lightweight
Shock and water proof. Li-ion battery for 10hr operating time
Linux operating system
Input optical auto-detection and self-protection
Optical connector connection alarm
Self calibration

Applications:

Troubleshooting and maintenance of optical fiber networks

Specifications:

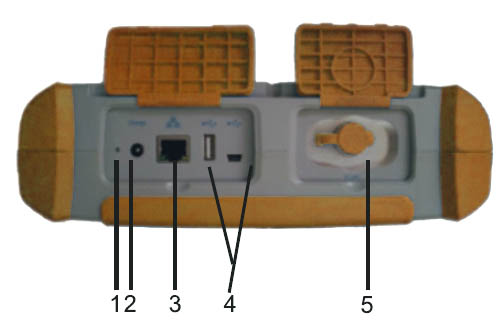

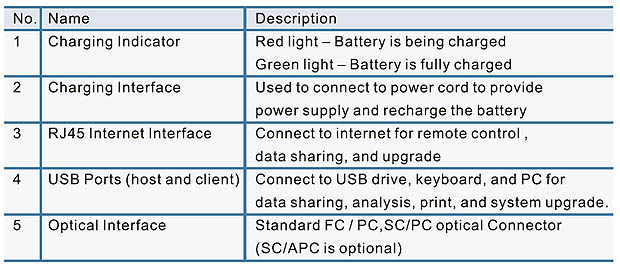

Interface

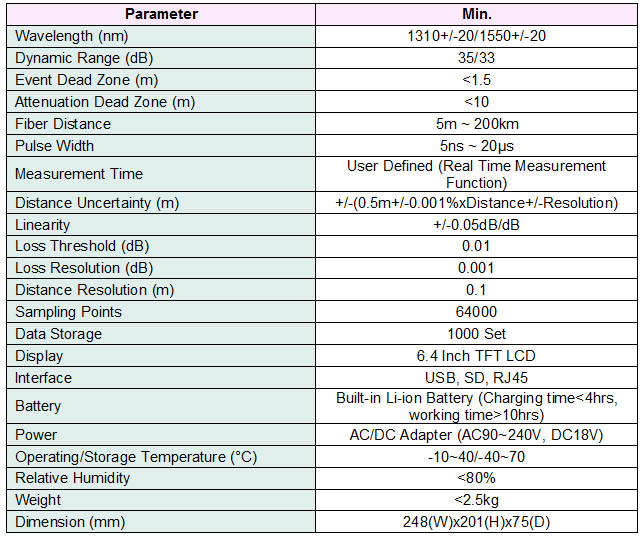

Optical and Electrical Specifications

Accessories:

Power adapter/Charger
Carrying bag
SD Card (1Gb)
FC Adapter and SC adapter
Software CD
USB cable

Ordering Information:

OTDR-P-35

Prices listed are for retail quantities. Please enquire with us directly for prices on large orders.

Note: Any additional specifications, such as the type of connectors (i.e. FC or SC, UPC or APC), user-defined coupling ratio or pigtail fiber length, can be specified at the Add Comments area on the Checkout webpage. You can also use emails to inform us your additional requirements.
