This 1x8 and 1x16 optical switches are ideal modules for applications requiring high optical switching density. These modules comply with Telcordia GR-1073-CORE test and applicable items of Telcordia GR-1221-CORE test.

Features:

• High switching speed
• Built-in position/status monitoring
• Direct drive
• RoHS compliance

Applications:

• Optical network monitoring
• Optical measurement systems

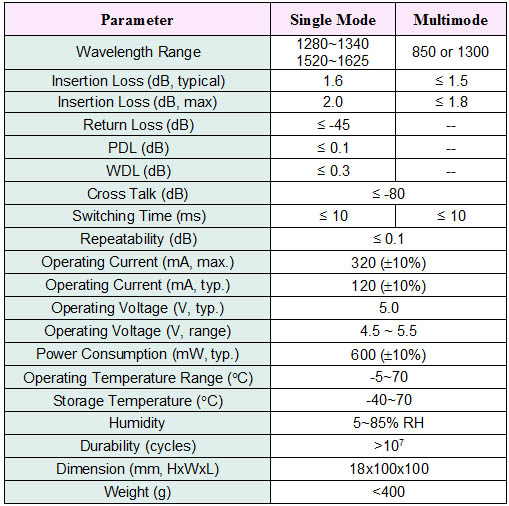

Specifications:

Ordering Information:

FOSW-a-w-b-e-c-d
a: Port Number of the optical switch; a=1x8 or a=1x16.
w: Center Wavelength in nm; w=1310, w=850, etc.
b: Single mode or multimode pigtail; b=9 for 9/125 micron single mode fiber; b=50 for 50/125 micron multimode fiber, etc.
e: Latching or non-latching; e=L for latching type; e=NL for non-latching type.
c: Fiber Pigtail Type; c=1 for 0.9mm loose tube pigtail, etc.
d: Connector Type, d=LU for LC/UPC, d=SA for SC/APC, d=N for no connectors, etc.

Example: FOSW-1x16-850-50-L-1-SU
