    Pigtailed PIN Photodetector - 2GHz

    Model PD-20
    Price:   US$25.99
    Available Options:
    Connector Type:
    Pigtail Type:
    Reviews

The PD20 photodetector is designed for applications in optical communications and lab use. It uses an InGaAs PIN photodiode to achieve high speed (3dB bandwidth 2 GHz) detection within a wide wavelength range (1 to 1.6 micron). It has fiber pigtailed optical input and a compact package. It is a very cost effective and ready-to-use product.

Features:

  • InGaAs PIN Photodiode (wavelength 1 to 1.6um)
  • Compact size
  • Cost effective

Applications:

  • Analog optical links
  • SONET/SDH systems
  • FTTx
  • O/E converter

Specifications:

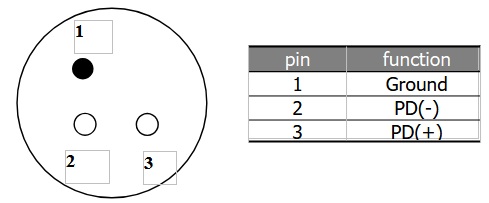

Please note above pin allocation is sample only. Special pin allocation can be requested. Refer to the test data sheet attached with each photodiode for its pin allocation.

Ordering Information:

PD-20-1-d
d: Connector Type, d=FA for FC/APC, d=SU for SC/UPC, d=N for no connectors, etc.

Example: PD-20-1-FA

See also: 10Gbps High Speed PIN Detector with TIA Integrated and 1310nm FP Laser Diode and 1550nm DFB Laser Diode
