    Optical Fiber In-line Polarizer

    Model PLI
    Price:   US$229.00 US$199.00
    Available Options:
    Center Wavelength:
    Connector Type:
    Pigtail In:
    Pigtail Out:
    Reviews

Features

  • High extinction ratio
  • Low insertion loss
  • High return loss
  • Epoxy-free optical path

Applications

  • Fiber optical system tests
  • Optical amplifiers
  • Optical LAN systems
  • Optical communication systems

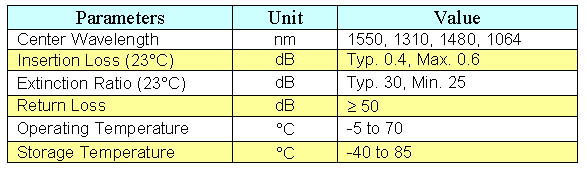

Specifications

Ordering Information:

PLI-w-a-b-c-d
w: Center Wavelength in nm; w=1310 for 1310nm, w=1550 for 1550nm, etc.
a: Input fiber type, a=P for PM fiber, a=S for single mode fiber.
b: Output fiber type, b=P for PM fiber.
c: Fiber Pigtail Type; c=0 for 250 micron bare fiber; c=1 for 0.9mm loose tube pigtail, etc.
d: Connector Type, d=FA for FC/APC, d=SU for SC/UPC, d=N for no connectors, etc.

Example: PLI-1550-S-P-1-FA
